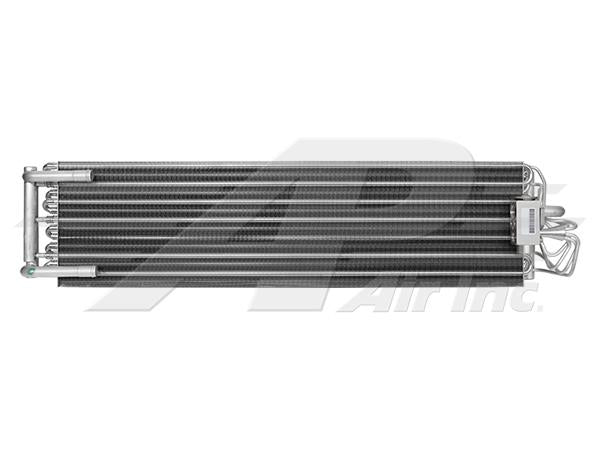

Evaporator with Heater Core
Evaporator with Heater Core
Regular price
$476.71
Regular price
Sale price
$476.71
Unit price
per
Couldn't load pickup availability
Product information & specifications
OEM part numbers
AL203684
AL203684
Specifications
| VALVE TYPE | Block |
| FITTING TYPE | O-Ring |
| CORE LENGTH | 26 3/4" |
| CORE HEIGHT | 7" |
| CORE THICKNESS | 4" |
| OVERALL LENGTH | 31" |
| OVERALL HEIGHT | 7" |
| OVERALL WIDTH | 5 3/4" |
| FITTING INLET | #8 |
| FITTING OUTLET | #10 |
| INLET | Heater Core 5/8" |
| OUTLET | Heater Core 5/8" |
Compatible With
John Deere Tractors6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145, 6145R, 6150R, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 6R 110, 6R 120, 6R 145, 6R 155, 6R 165, 6R 175, 6R 195, 6R 215, 6R 230, 6R 250
John Deere Tractors6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145, 6145R, 6150R, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 6R 110, 6R 120, 6R 145, 6R 155, 6R 165, 6R 175, 6R 195, 6R 215, 6R 230, 6R 250
