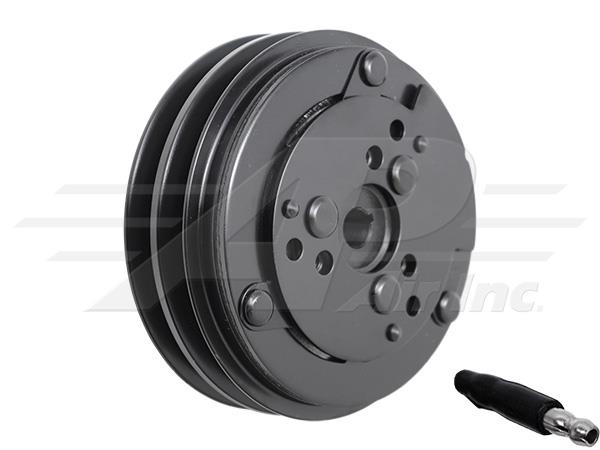

Sanden Clutch

Sanden Clutch

$141.00
$141.00
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH01-3759, 1-3759, A49676International700709771New Holland86505765, 916199, F0NN19D649AA, SFD013764, V55302VersatileV55302White30-3373177, 72162176, 72162178
Item Information
Without Dust Cover
Specifications
CLUTCH DIAMETER 132mm, 5.19"
DIMENSION B 10.5mm, 0.41"
GAUGE LINE (C) 26.5mm, 1.04"
COIL VOLTAGE 12
NUMBER OF GROOVES 2
GROOVE WIDTH A2, .469"
COMPRESSOR TYPE SD508, SD510, SD5H14
GAUGE LINE 39.55mm
COIL PART # 610-900
BEARING PART # 440-762

Compatible With

View compatible models and fitment notes (84 models)
Case Tractor 1394 , 1494 , 1594 , 1896 , 2096 , 4494 , 4694 , 9110 , 9130 , 9150 , 9170 , 9180 , 9190
Case Tractor 9210
Serial Number JEE0031849 and Below Use with 509-410 and 509-4103
Case Tractor 9230 , 9240 , 9250 , 9260 , 9270 , 9280
Serial Number JEE0031849 & Below
International Swather 6000
New Holland Combine TR86
Serial Number 529723 and Above
New Holland Combine TR87 , TR88 , TR89 , TR97 , TR98 , TR99
New Holland Combine TR96
Serial Number 529779 and Above
New Holland Swather 4750V
New Holland Tractor 6410 , 7610O
With SD5H14 Compressor
New Holland Tractor 9030E , 9030V
7/90 to 12/93
New Holland Tractor FW20
With 5 1/4" 2 Groove Clutch
Versatile Tractor 1150 , 835 , 855 , 875 , 895
1/81 to 12/84
Versatile Tractor 1156
1/86 to 12/92
Versatile Tractor 160
12/81 to 12/83
Versatile Tractor 256
8/83 to 7/85
Versatile Tractor 276
1/84 to 12/89
Versatile Tractor 555
Versatile Tractor 756
1/86 to 12/86
Versatile Tractor 836 , 856
1/85 to 12/87
Versatile Tractor 846
1/88 to 12/93
Versatile Tractor 876 , 946 , 976
1/85 to 12/93
Versatile Tractor 9030
7/90 to 12/93
Versatile Tractor 936
1/85 to 12/88
Versatile Tractor 945 , 955 , 975
1/83 to 12/84
Versatile Tractor 956
1/85 to 12/85
White Tractor 100 , 120 , 125 , 140 , 145 , 160 , 170 , 185 , 195 , 2-110 , 2-88 , 4-225 , 4-270 , 60 Series , 80 Series
White Tractor 2-135 , 2-155
Serial Number 299208 and Above
White Tractor 2-180
Serial Number 301922 and Above
White Tractor 4-210
Serial Number 299732 and Above
White Tractor 6065
Serial Number 51090 and Below, or SD5H14 Compressor
White Tractor 6085
Serial Number 1565 and Below
White Tractor 6105
Serial Number 1401 and Below, or SD5H14 Compressor
White Tractor 6125
Serial Number 622000 and Below
White Tractor 6145
Serial Number 642000 and Below
White Tractor 6175
Serial Number 661000 and Below
White Tractor 6195
Serial Number 681000 and Below
