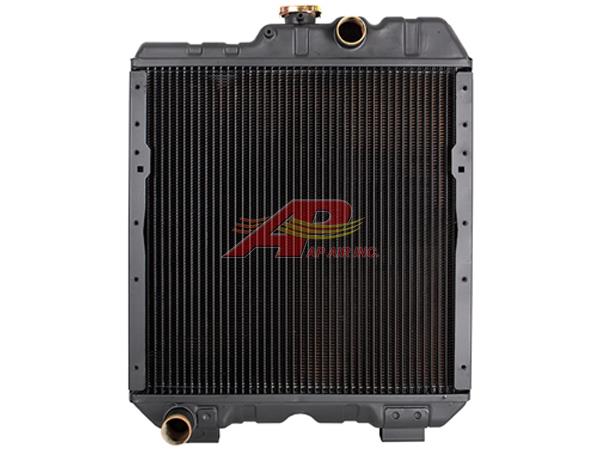

S5172926 - Case/NH Radiator

S5172926 - Case/NH Radiator

$785.57
$785.57
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH5172925, 5172926, S5172925, S5172926New Holland5172925, 5172926, S5172925, S5172926
Item Information
Fits JX75, JX85, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N Case/IH Tractors And
Also Fits TN60VA, TN65V, TN70VA, TN75F, TN75VA, TN75V SPECIAL, TN80F, TN85FA, TN90, TN90F, TN95F, TN95FA, TN95VA Ford/NH Tractors Will Not Fit TN60DA, TN60SA, TN70DA, TN70SA, TN75DA, TN75SA Ford/NH Tractors That Use Radiator Mounted Slide Channels OE# 47128036 and 47128035 to Mount Condenser
Specifications
CORE HEIGHT 17 1/2"
CORE WIDTH 17 1/2"
CORE THICKNESS 2 3/8"
OVERALL HEIGHT 23 1/2" - Does not include Filler Neck
OVERALL WIDTH 18 3/8"
OUTLET HOSE SIZE 1 1/2"
INLET HOSE SIZE 1 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 7
NUMBER OF ROWS 4

Compatible With

View compatible models and fitment notes (26 models)
Case Tractor JX1060V , JX1070V , JX1075V , JX1095V
Case Tractor JX1070N , JX1075N , JX1095N , JX75 , JX85 , JX95
For Straddle Version Tractors
New Holland Tractor TN60VA , TN65V , TN70NA , TN70S , TN70VA , TN75F , TN75V , TN75VA , TN80F , TN85FA , TN90F , TN95F , TN95FA , TN95NA , TN95VA
New Holland Tractor TN75DA
Without Air Conditioning
