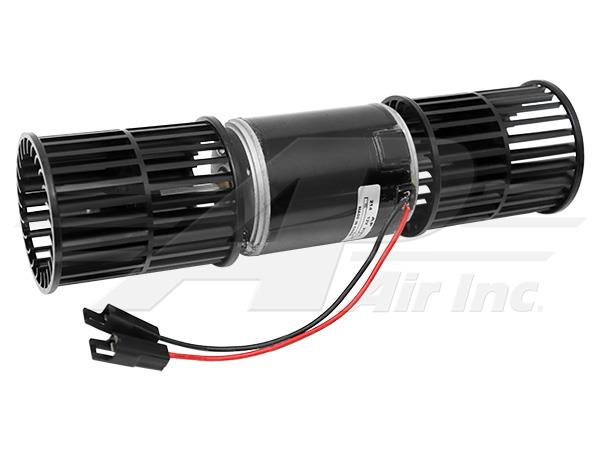

Heavy Duty Motor Repair Kit - HD Bearing Style with OE Wire Connectors, Wheels and Mounting Gasket EARLY serial number
Heavy Duty Motor Repair Kit - HD Bearing Style with OE Wire Connectors, Wheels and Mounting Gasket EARLY serial number
Regular price
$99.37
Regular price
Sale price
$99.37
Unit price
per
Couldn't load pickup availability
Product information & specifications
OEM part numbers
AR62497, RE223623
AR62497, RE223623
Item Information
OE Wire Connectors, Wheels, and Mounting Gaskets
Sealed Motor
Original Replacement Motor Can Use BM20013 or BM20013HD
Sealed Motor
Original Replacement Motor Can Use BM20013 or BM20013HD
Additional Information
Early Series - Requires 2 per Application Cab Serial Number 167883 and Below, 5/16" Double Shaft 2 Wire Motor
Early Series - Requires 2 per Application Cab Serial Number 167883 and Below, 5/16" Double Shaft 2 Wire Motor
Specifications
| TYPE | Double Shaft, Single Speed |
| SHAFT SIZE | 5/16" |
| SHAFT LENGTH | 2 3/4" |
| MOTOR DIAMETER | 3" |
| MOTOR LENGTH | 3 3/4" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 2 |
| VOLTAGE | 12 |
| STUD SPAN | 2 5/16" |
Compatible With
John Deere Tractors4030, 8430 4WD, 8630
John Deere Tractors4030, 8430 4WD, 8630
